Tynor Taylor Brace Urbane A34 | Dorso-Lumbar Back Brace
Lower back pain
Post-Operative Recovery
Physiotherapy Patients
NDIS Participants
Fracture Recovery
Spinal & postural support (as advised)
NDIS Participant Support

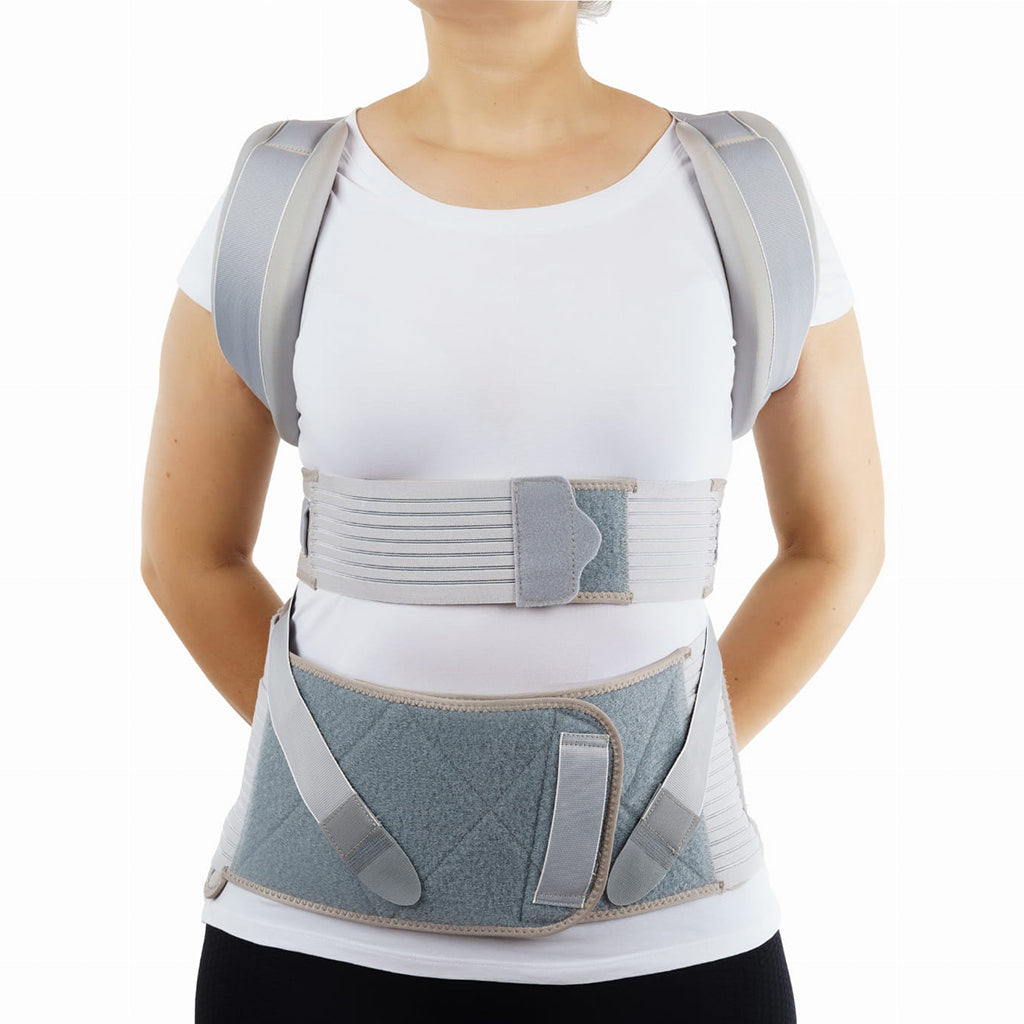

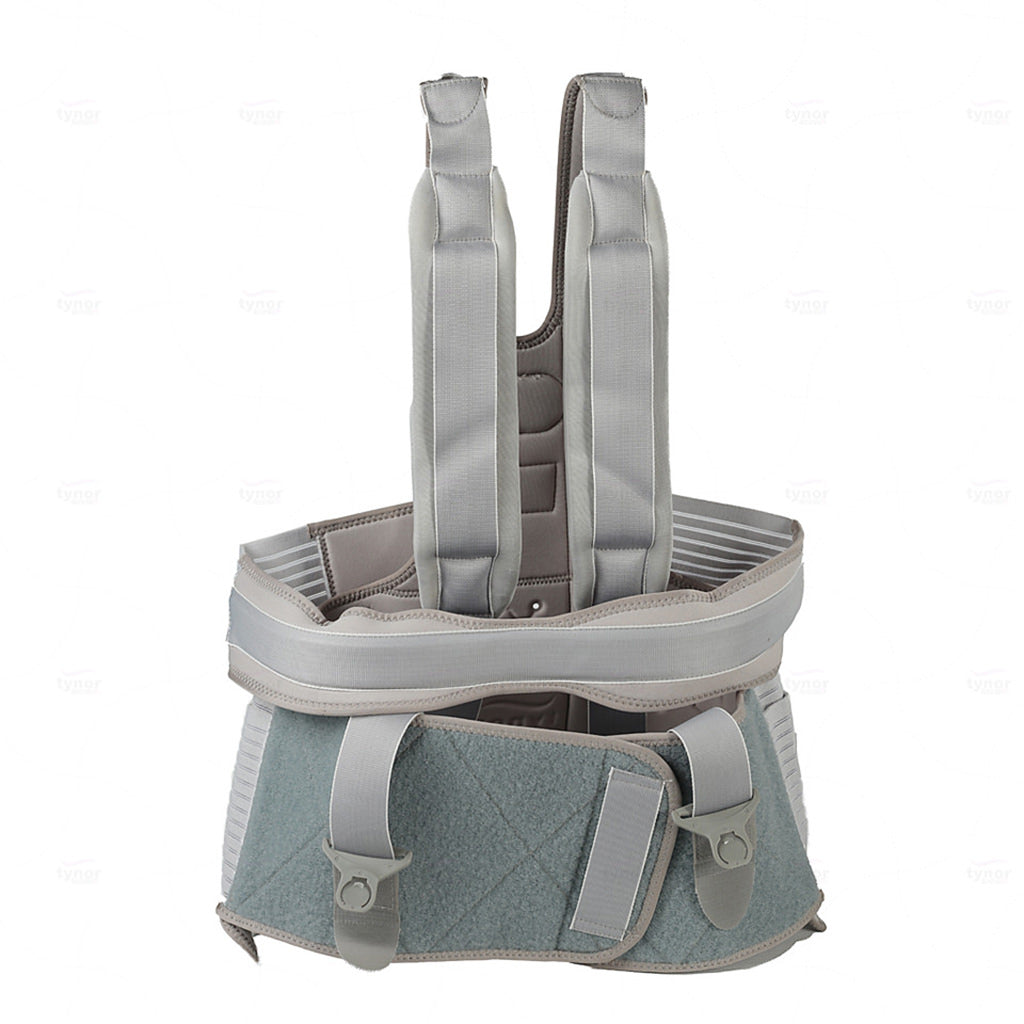

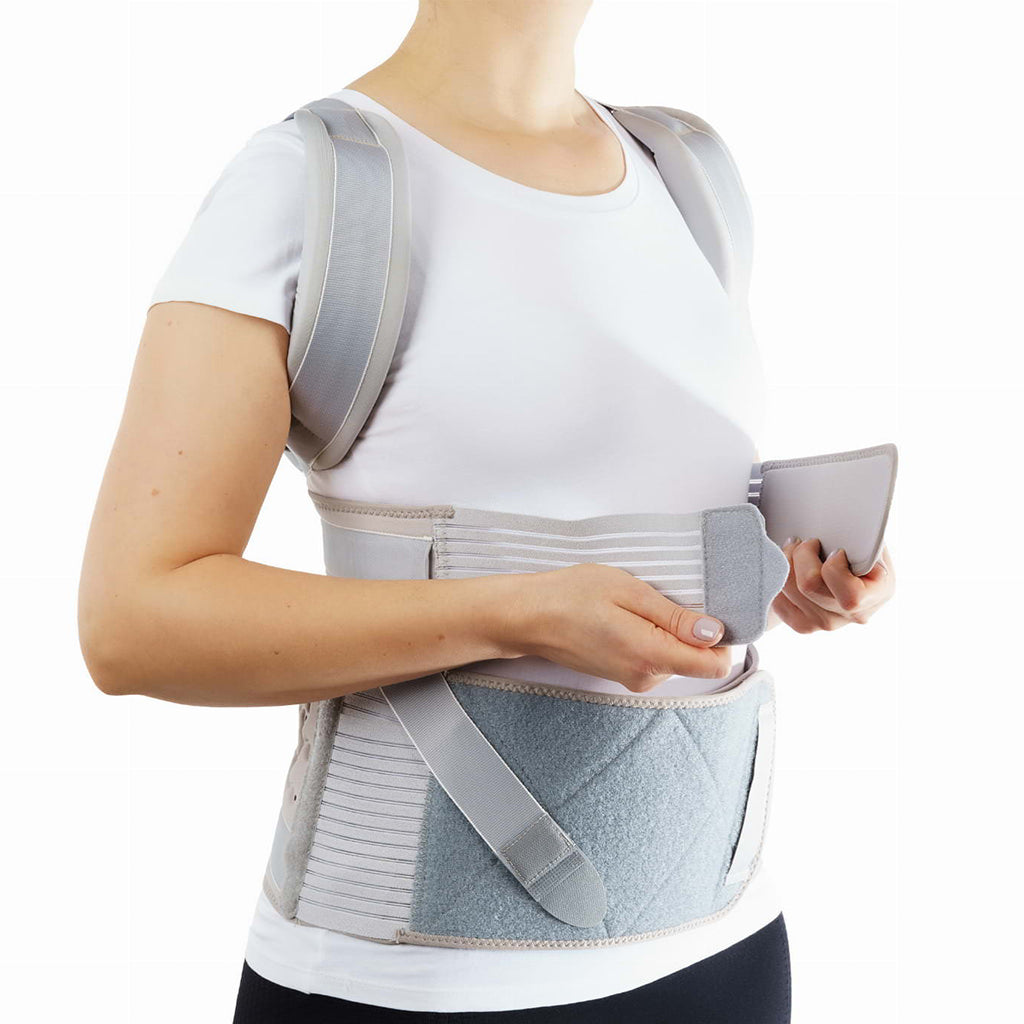

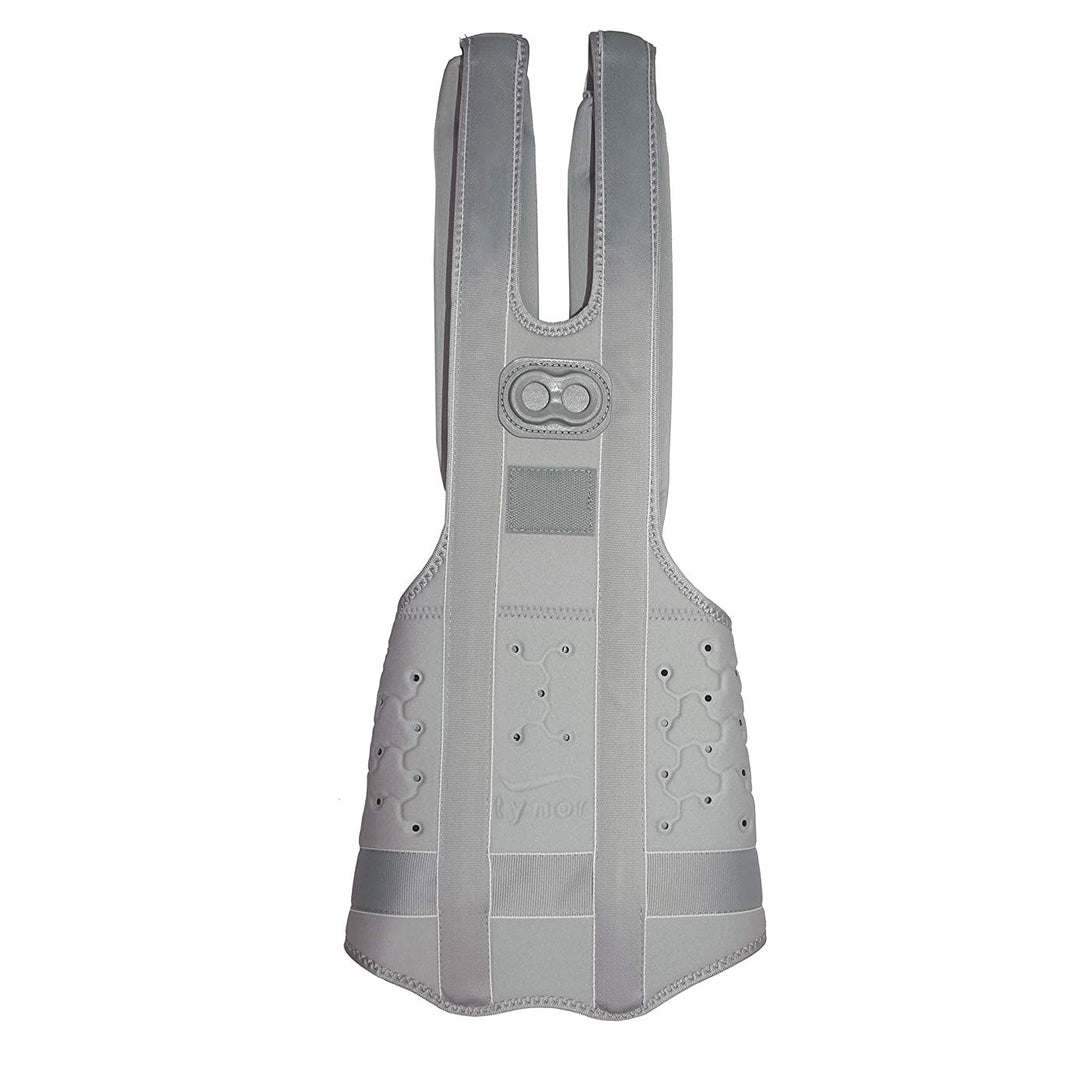

The Tynor Taylor Brace Urbane A34 is a lightweight dorso-lumbar spinal brace designed to provide structured support and coverage across the mid and lower back. Built around a malleable aluminium frame with two rigid, pre-contoured paraspinal bars, it is designed to help hold the spine in a neutral position and immobilise the dorso-lumbar region. A removable thoracic splint helps limit rotation of the upper torso, while cushioned shoulder pads and a hook-and-loop front panel allow the brace to be adjusted to the wearer. Supplied by Australian Healthcare Supplies, a registered NDIS provider based in Perth, Western Australia.
- Malleable, lightweight aluminium frame with two rigid upright paraspinal bars, pre-contoured to help maintain a neutral spinal position.
- Removable horizontal thoracic splint designed to help limit rotation of the upper torso and add stability.
- Splints extend to cover the scapula, pelvis and sacrum regions for effective immobilisation.
- PU foam lining with well-cushioned shoulder pads designed to reduce axilla pressure and improve comfort.
- Looped front abdominal panel with a hook-and-loop mechanism for customised tightening.
- Snap-swivel buckle designed for easy wearing and removal with minimal movement.
- 3D fabric designed for ventilation and comfort; available in two heights and two circumferences.
May assist in managing discomfort associated with the following conditions:
- Intervertebral disc problems
- Hyperkyphosis
- Dorso-lumbar immobilisation
- Support during structured recovery and rehabilitation periods (consult a physician)
- Periods of chronic discomfort or postural alignment challenges
- Loosen the front panel and shoulder straps, then position the brace against the back with the paraspinal bars centred over the spine.

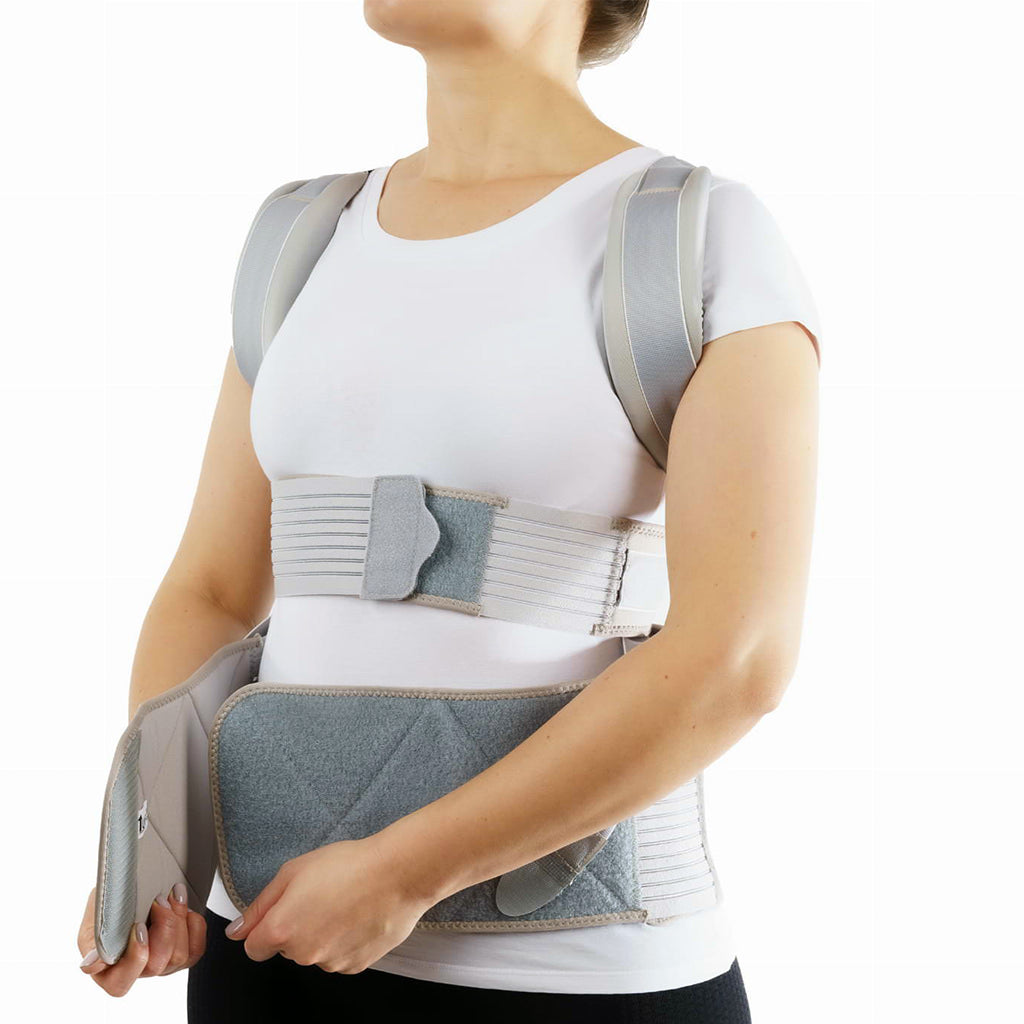

- Bring the front panel around the abdomen and fasten the hook-and-loop closure to a comfortable, firm fit.

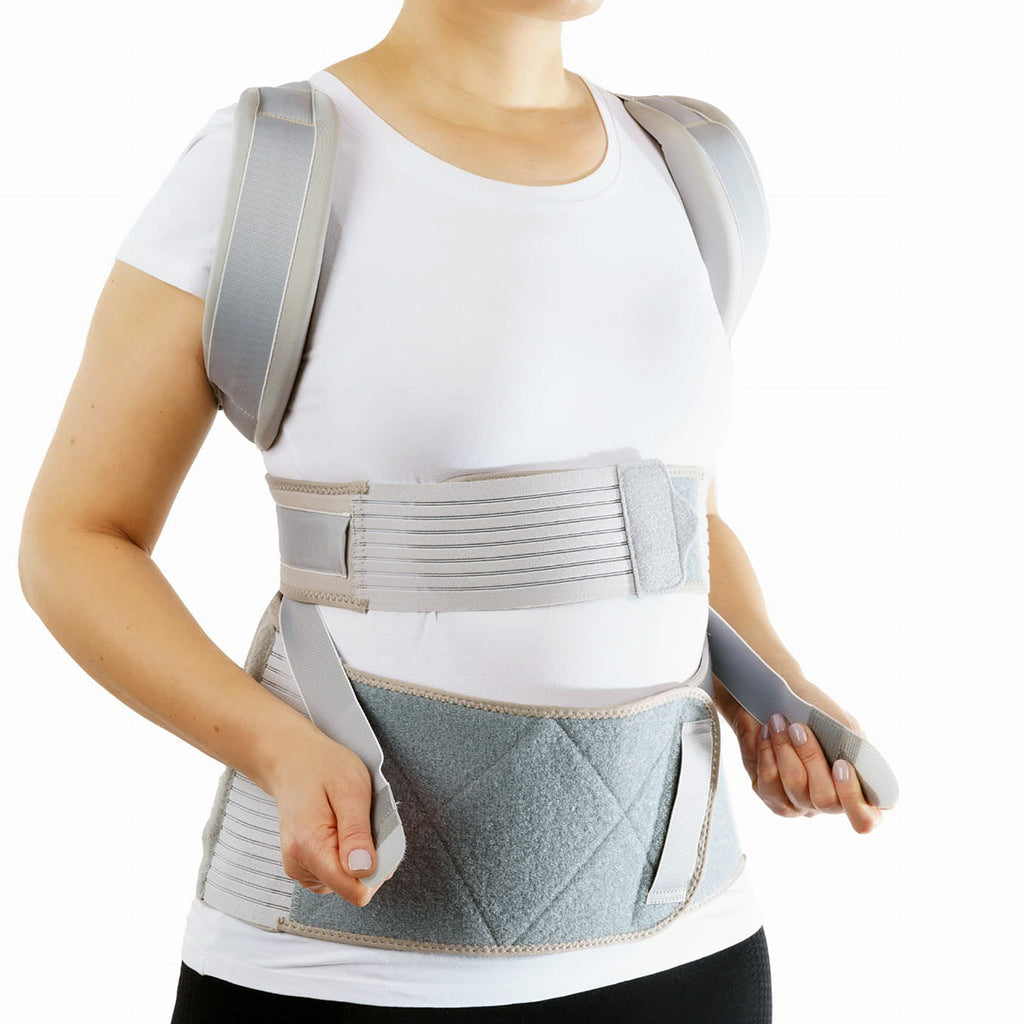

- Adjust the shoulder straps for correct posture without pressure on the underarms.

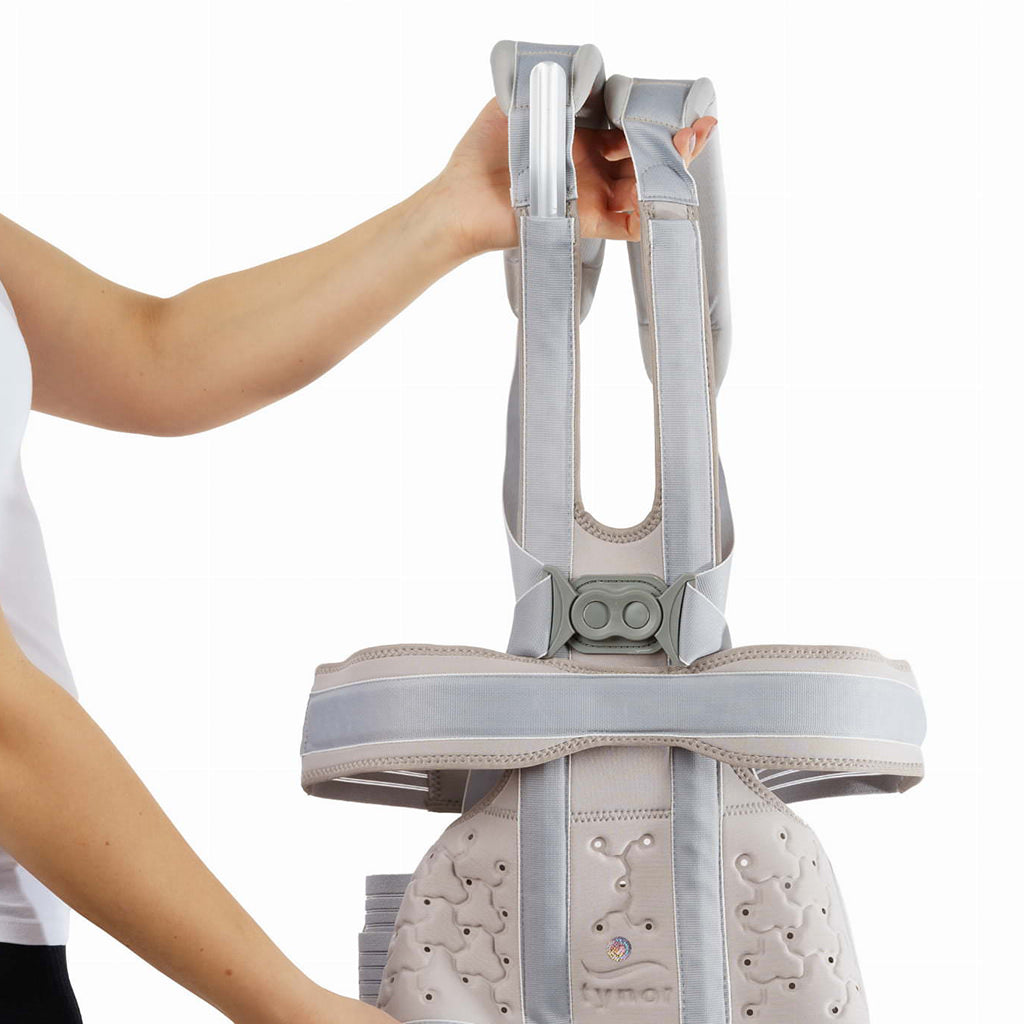

- The vertical and horizontal splints can be removed, shaped and reinserted by a professional using the anatomical shape of the body.
- 1 x Tynor Taylor Brace Urbane A34
- Removable paraspinal and thoracic splints
- Remove the splints before washing where possible.
- Hand wash the fabric with mild detergent and water below 30°C without wringing.
- Dry in shade on a flat surface.
- Do not dry-clean, iron or bleach.
- Always consult a qualified doctor before use, and seek medical advice if discomfort or symptoms persist or worsen.
- Consult your doctor in case of concurrent use with any other medical device.
- Misuse or improper use of the device can lead to adverse effects and decreased effectiveness.
- Splints should be placed at the correct anatomical position for effective use, and shaped only by a professional.
- Keep out of reach of children.
- Please check with your doctor, physiotherapist, or healthcare professional to confirm this product is suitable for your condition and correct sizing.
What is the difference between Short and Long types?

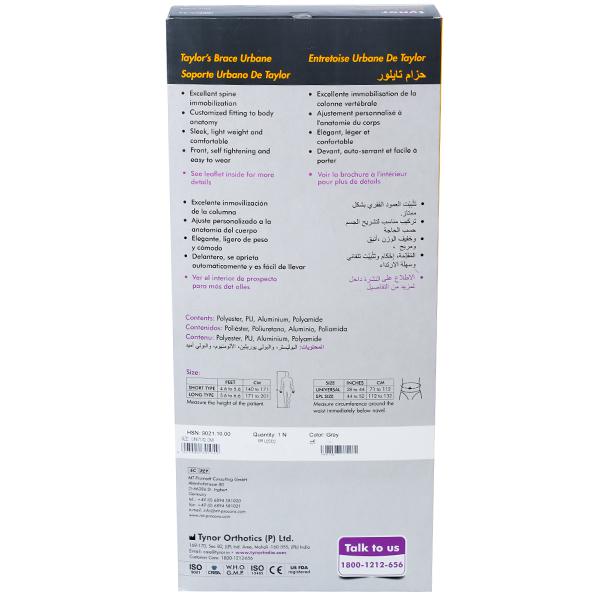

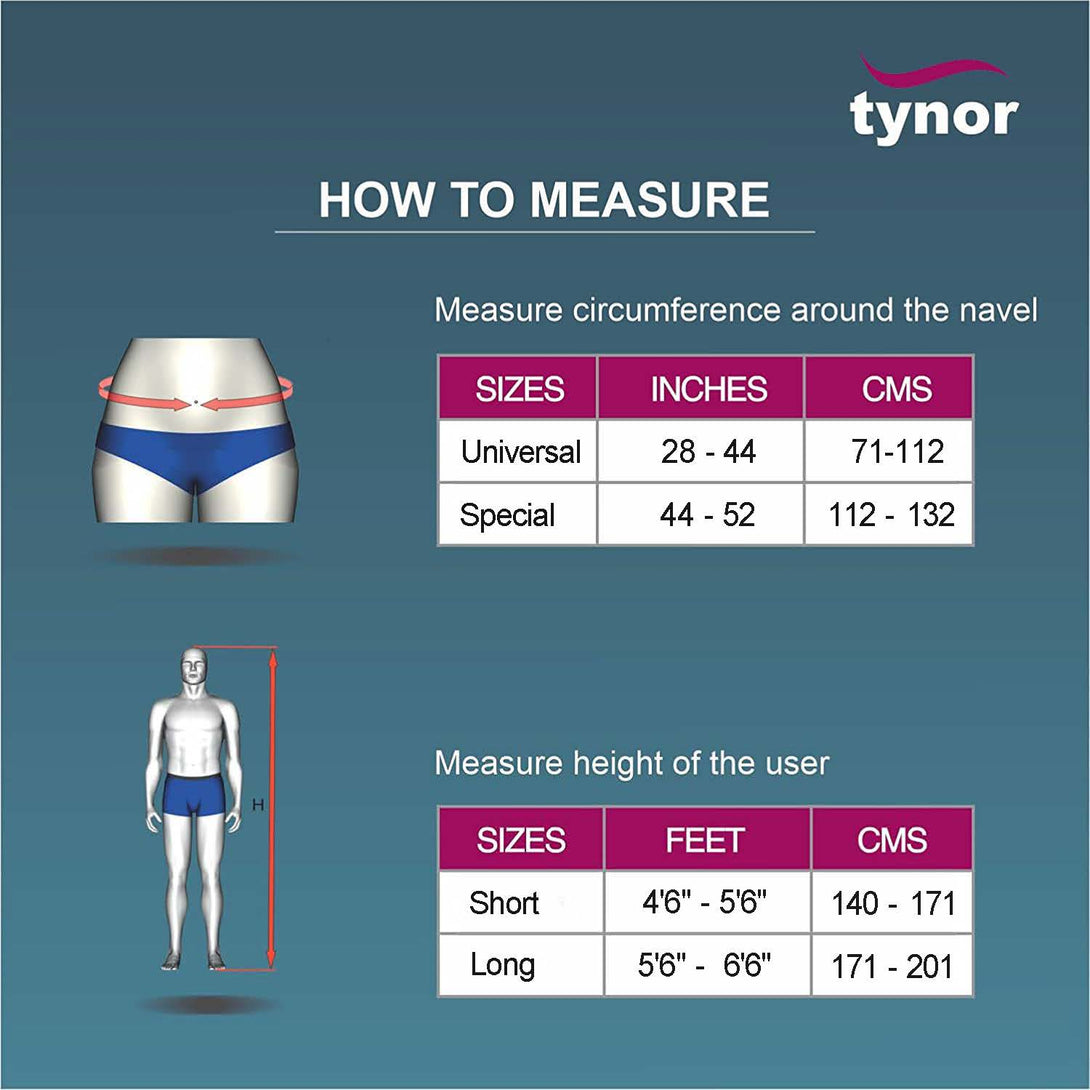

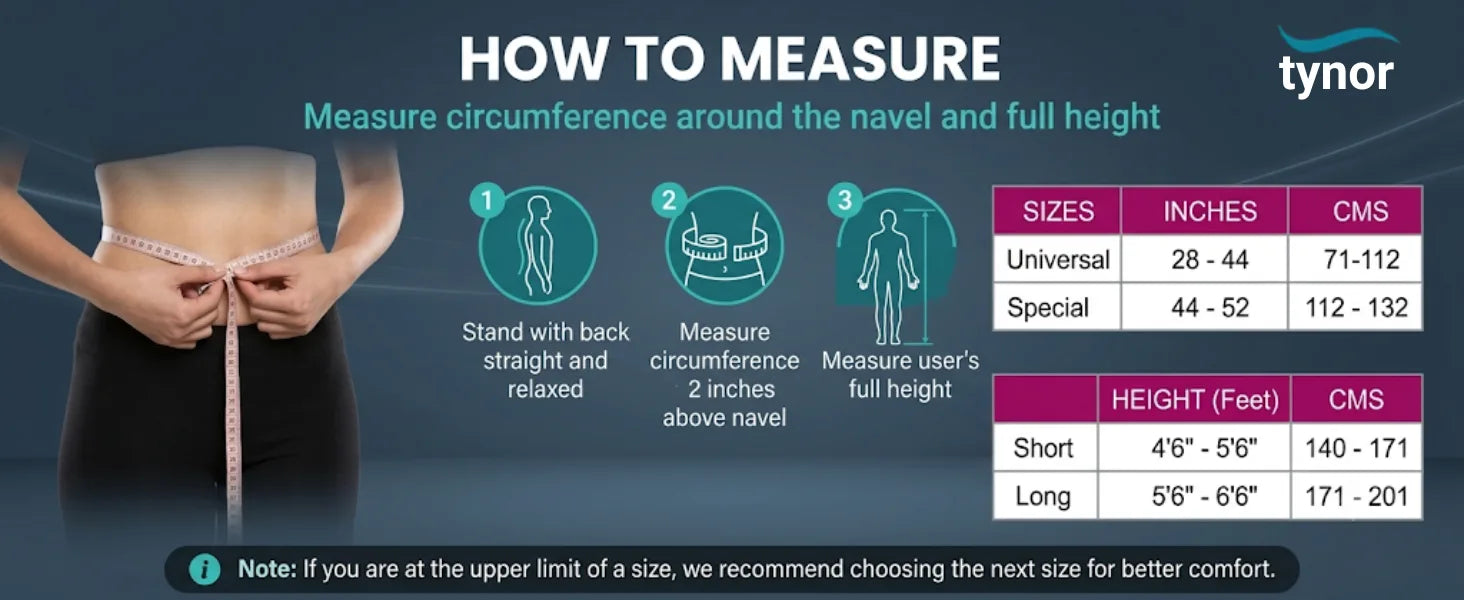

The Short type suits users approximately 140 to 171 cm in height and the Long type suits users approximately 171 to 201 cm. Measure height and check the size guide before ordering.
How do I choose between UNI and SPL sizes?
Measure the circumference around the navel. UNI covers roughly 71 to 112 cm and SPL covers roughly 112 to 132 cm.
Can the splints be adjusted?
Yes. Both the vertical paraspinal bars and the horizontal thoracic splint can be removed, shaped and reinserted by a healthcare professional.
Is it discreet under clothing?
The brace uses a lightweight aluminium frame and 3D fabric designed to be worn comfortably during recovery and rehabilitation.
- Product Code: A 34
- Sizes Available: UNI, SPL (Short and Long types)
- Device Classification: Class I Medical Device
- Certifications: ISO 9001 · ISO 13485 · ISO 45001 · US FDA Registered · CE Marked · W.H.O. GMP
- Materials: Aluminium frame, PU foam padding, 3D fabric
- Manufacturer: Tynor Orthotics Pvt. Ltd.
- EC Representative: MT Promedt Consulting GmbH, Ernst-Heckel-Straße 7, 66386 St. Ingbert, Germany
- Australian Supplier: Australian Healthcare Supplies, Perth WA — registered NDIS provider
- Bulk & wholesale orders: sales@tynor.com.au
