Tynor Ash Brace Hyper Extension A12 | Spinal Hyperextension Support

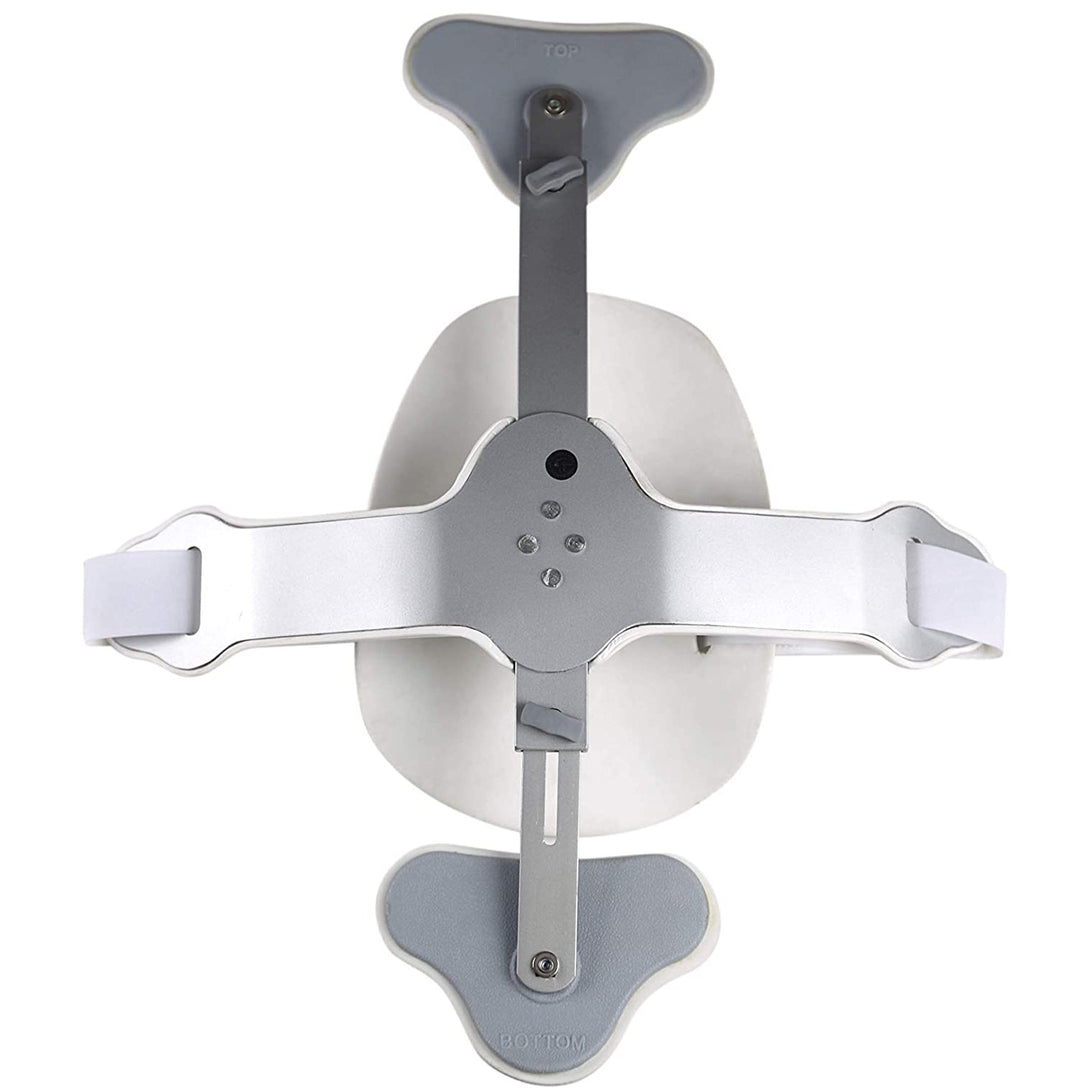

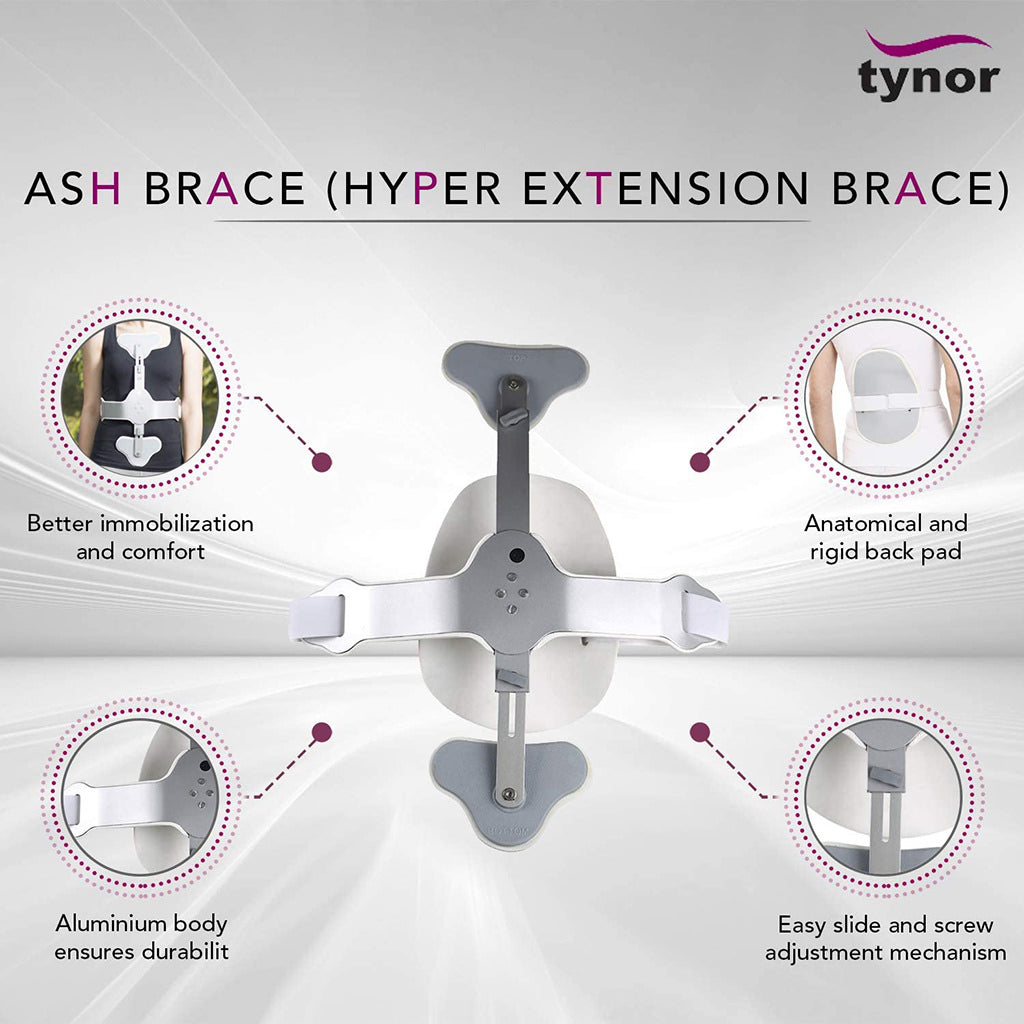

• Rigid frame — A lightweight, durable aluminium frame provides moderate, controlled immobilisation of the spine.
• Adjustable length — Telescoping vertical bars adjust to the wearer's height for a personalised fit.
• Knob & screw mechanism — Simple two-way knob-and-screw adjustment makes fitting and resizing easy.

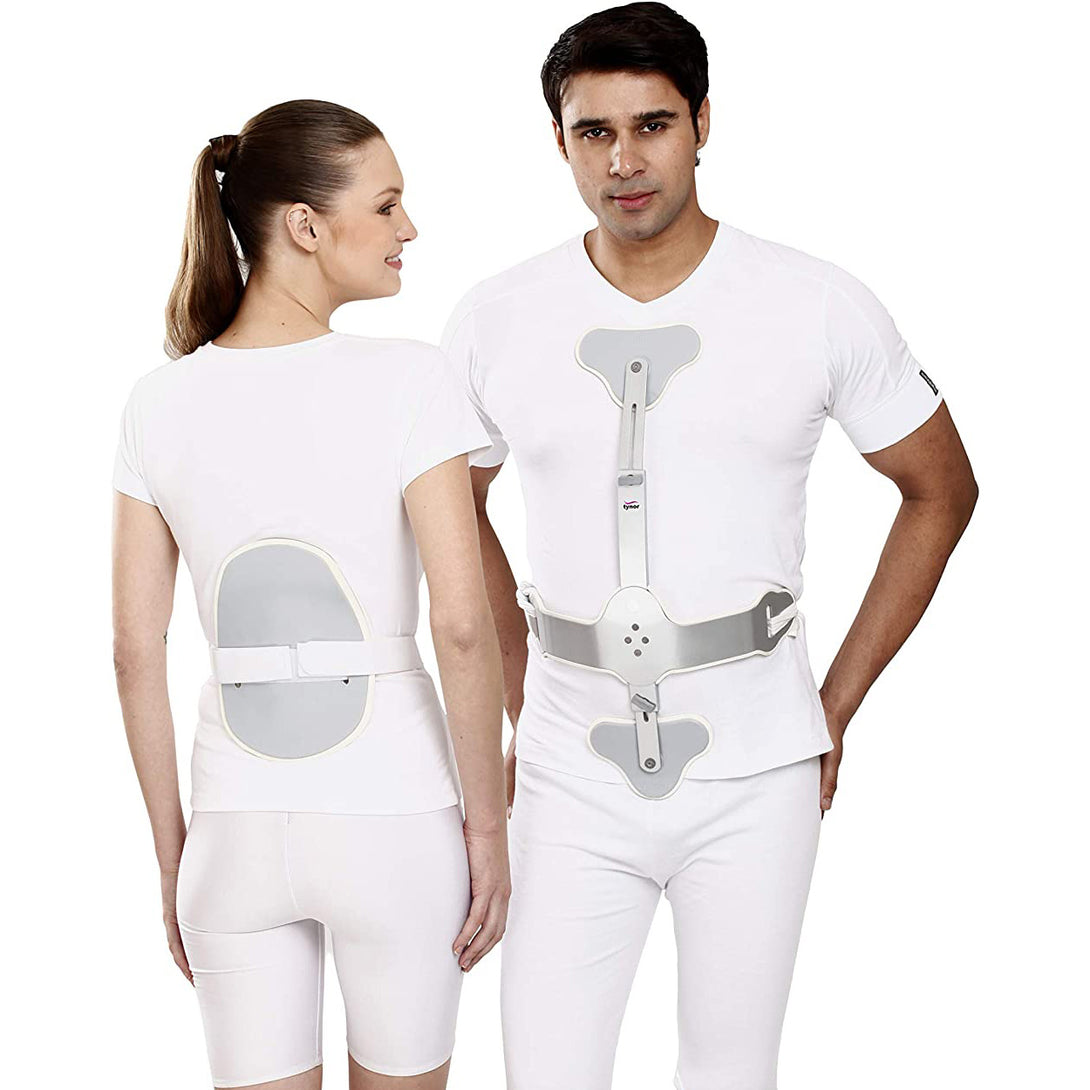

• 3-point pressure action — Pressure across the sternum, pubis and lower back helps maintain spinal alignment and a hyperextended posture.

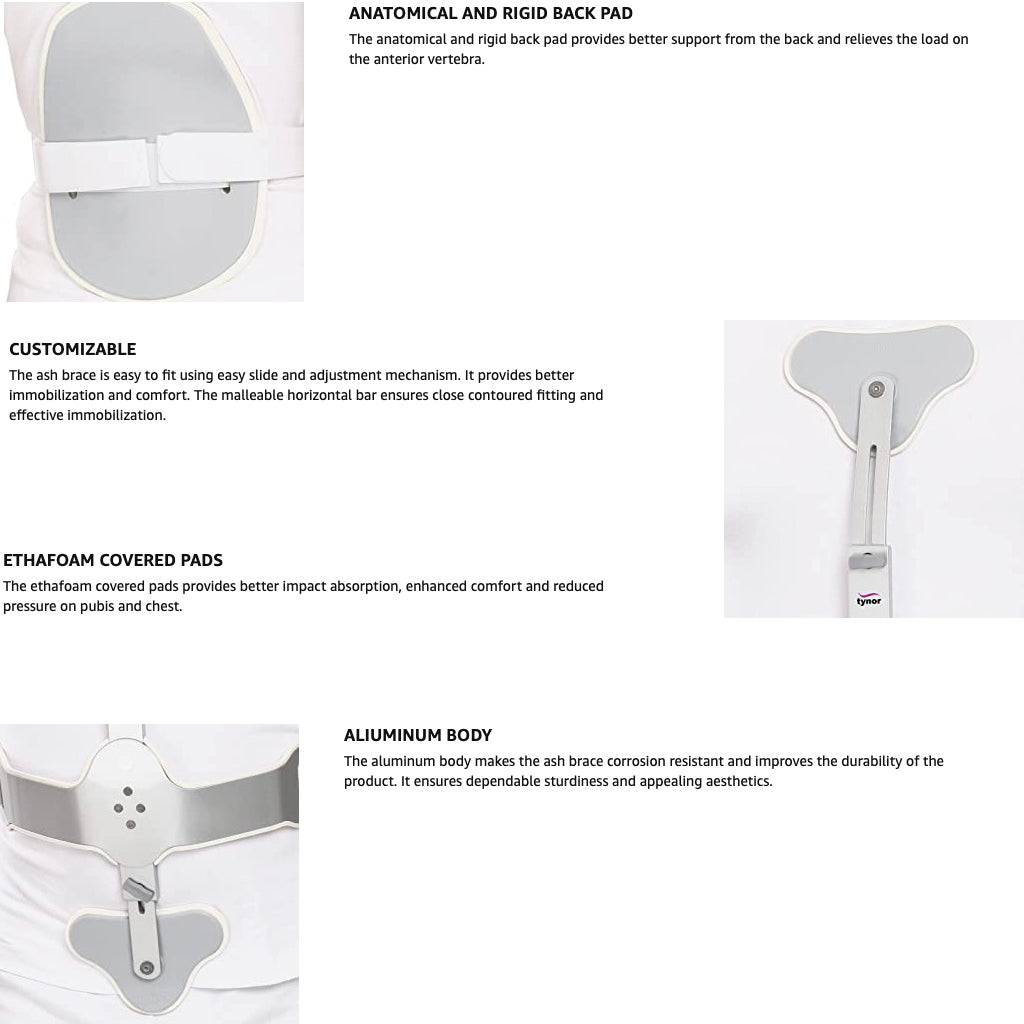

• Ethafoam-padded contact pads — Cushioned sternal and pubic pads (with a swivel sternal pad) reduce pressure on the chest and pelvis.

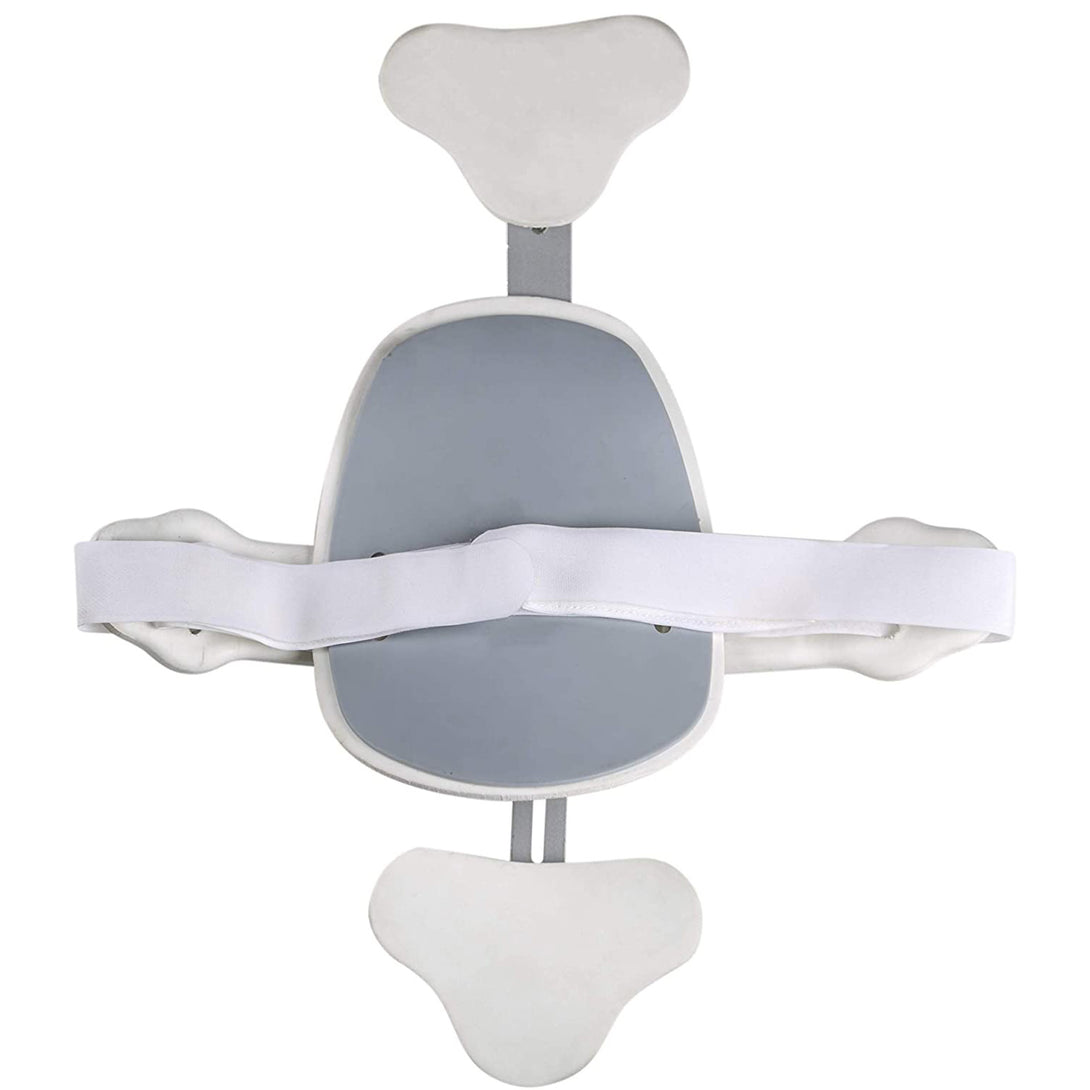

• Rigid back pad & hook-and-loop closure — A broad rigid back pad supports the lumbar region; reverse-buckle hook-and-loop straps fasten securely.

The Tynor Ash Brace is intended to immobilise and stabilise the thoracic and lumbar spine in a hyperextended position, limiting forward flexion, under the direction of a qualified healthcare professional.

• Osteoporotic vertebral (bone) collapse of the thoracic and lumbar spine
• Stable and inoperable anterior vertebral compression fractures of the thoracic and lumbar spine
• Idiopathic hyperkyphosis of the spine (including Scheuermann's disease)
• Intervertebral disc prolapse or herniation
• Post-surgical spinal support and immobilisation
• Maintaining a neutral / hyperextended spinal position to offload the anterior vertebrae

ⓘ Important: This is a Level 4/5 rigid spinal hyperextension brace. It must be selected, fitted, shaped and adjusted under the direct supervision of a qualified healthcare professional. Do not bend or modify the frame yourself.

Use under the strict guidance of a qualified healthcare professional. Fitting and any shaping of the bars should be carried out by your clinician.

1. Unfasten the hook-and-loop closures.
2. Adjust the vertical pads to the required length using the knob-and-screw mechanism.

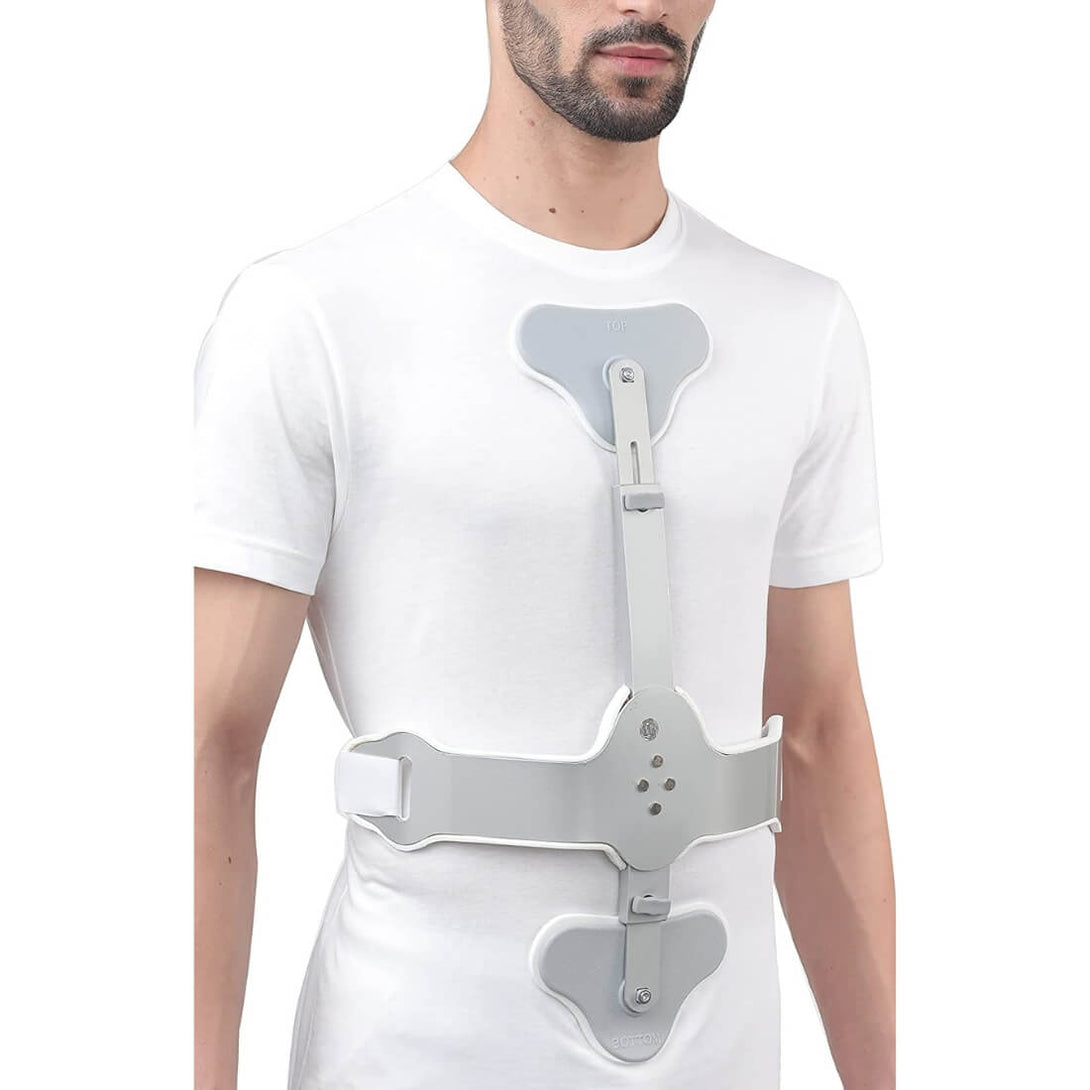

3. Place the brace on the body with the sternal pad centred on the chest and the pubic pad over the centre of the pubic area.
4. Bend the horizontal main body of the brace to follow the curve of the abdomen.
5. Align the back pad at the centre of the lower back (lumbar-sacral region).
6. Fasten the hook-and-loop closures for a secure, comfortable fit.

• 1 × Tynor Ash Brace Hyper Extension (A-12)
• Sternal, pubic and lumbar back pads (attached)
• User instruction manual

• Wipe with a clean, moist, lint-free cloth
• Do not use solvents (acetone, thinner, turpentine or petroleum products)
• Dry flat in the shade
• Do not dry-clean, iron or bleach

• Use only under the strict guidance of a qualified healthcare professional
• Shaping and adjustment of the frame should be performed by your clinician
• Discontinue use and seek medical advice if you experience impaired sensation, reduced blood flow, allergic rash or itching, or if pain persists or worsens
• Consult your doctor before using this device alongside another medical device
• Misuse or improper fitting may cause adverse effects and reduce effectiveness
• Follow the instructions provided on the box
• Keep out of reach of children

What is the Ash Brace used for?
It immobilises and supports the thoracic and lumbar spine in a hyperextended position to limit forward bending — used in the management of vertebral compression fractures, osteoporotic collapse and post-surgical recovery, as directed by a healthcare professional.

How does it work?
It uses a three-point pressure system across the sternum, pubis and lower back to hold the spine in extension and offload the front of the vertebrae.

How is it adjusted?
The vertical bars adjust for length via a knob-and-screw mechanism and the horizontal bar can be shaped to the body — adjustments should be done by your clinician.

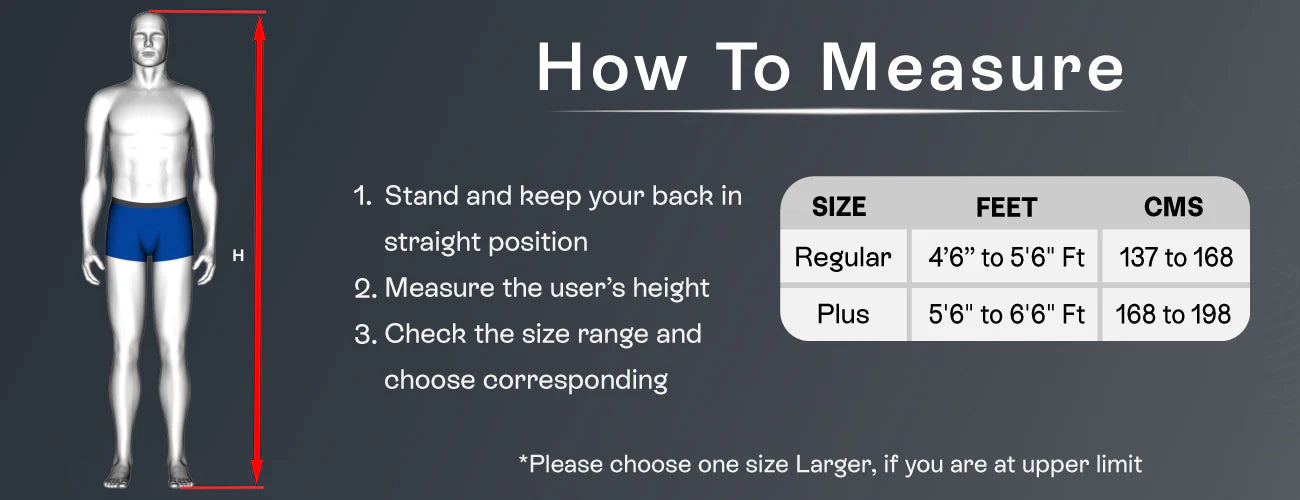

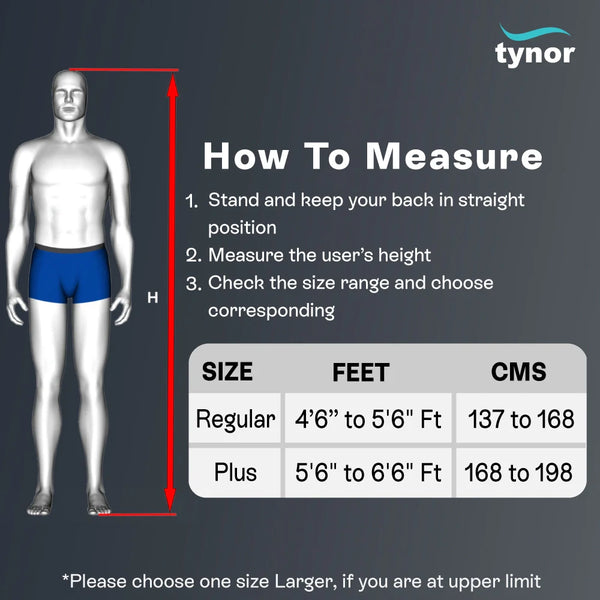

How do I choose the right size?
Sizing is based on the wearer's height (Short: approx. 137–168 cm; Long: approx. 168–198 cm).

Product Code: A 12
Sizes: Short and Long (by height — Short approx. 137–168 cm; Long approx. 168–198 cm)
Materials: Aluminium, Polyamide, Ethafoam, Mild Steel, Polypropylene, Polyethylene
Level of Immobilisation: 4/5
Device Classification: Class I Medical Device
Manufacturer: Tynor Orthotics Pvt. Ltd.
Australian Supplier: Australian Healthcare Supplies
