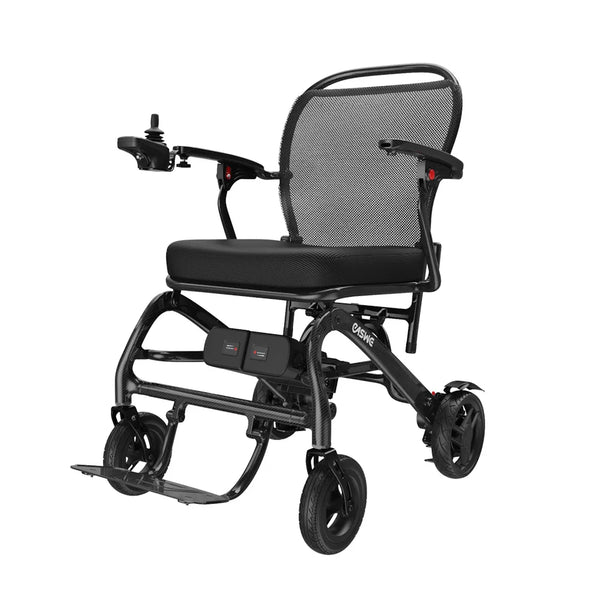

Easwe C20 Long Range Carbon Fibre Wheelchair | NDIS | Australia

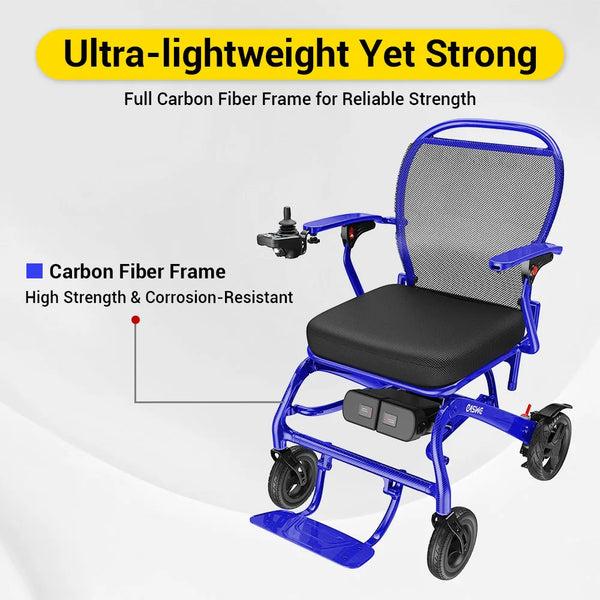

• Lightweight Carbon Fibre Frame — 12.7 kg — the C20's carbon fibre frame is designed to deliver strength at a low weight of approximately 12.7 kg (28 lb), making it easier to lift into a car boot and manage during travel. Carbon fibre is naturally resistant to rust and corrosion, supporting long-term durability in everyday and outdoor use.

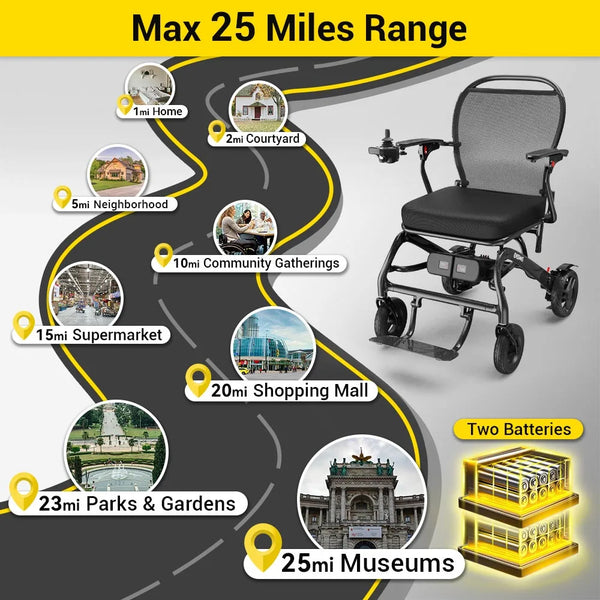

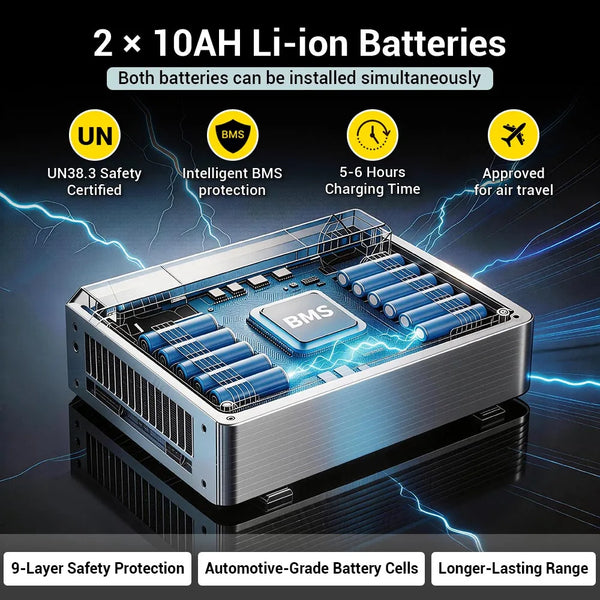

• Dual 10Ah Battery System — Up to 40 km Range — the C20 comes with two detachable 10Ah lithium batteries included as standard, fitted and used together to provide up to approximately 40 km of range on a full charge. This is designed to reduce the need to carry and swap a spare battery on longer outings.
• Airline-Approved Batteries — the detachable lithium batteries are designed to meet international airline carry-on requirements, supporting hassle-free air travel.

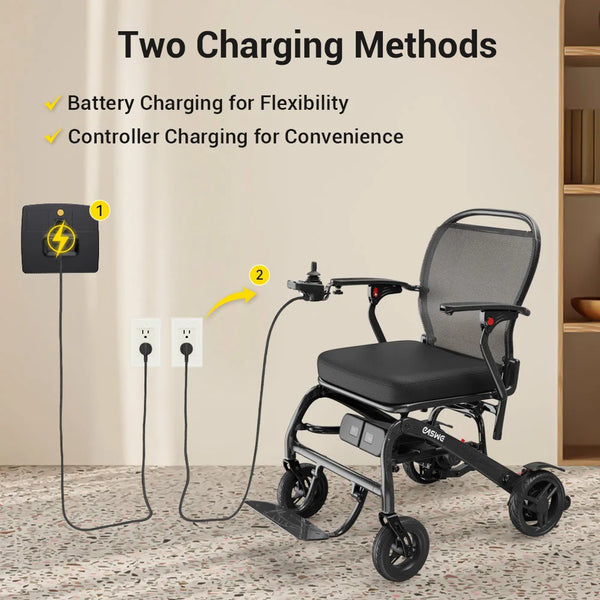

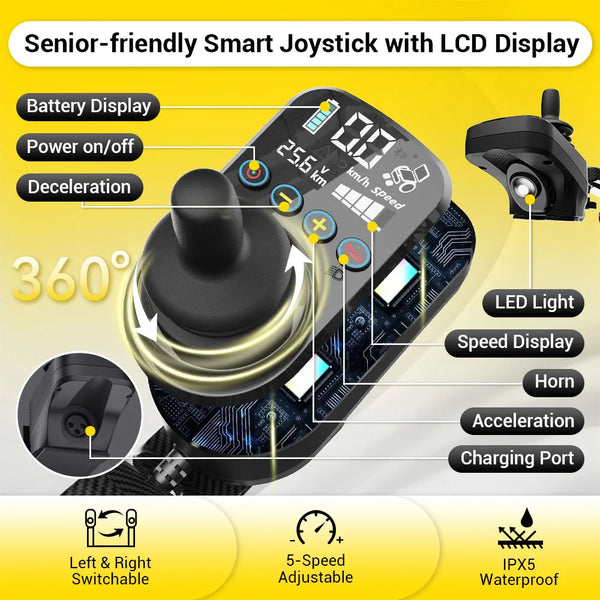

• IP66 LCD Controller — the smart LCD joystick carries an IP66 rating for protection against rain and splashes. Features real-time battery monitoring, speed adjustment, a safety horn, and a dedicated charging port.

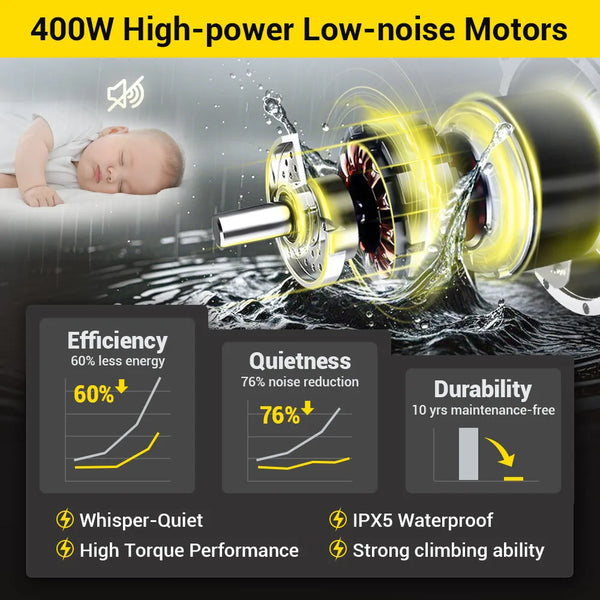

• Dual 200W Brushless Motors (400W Total) — designed to assist smooth, quiet navigation on footpaths, light gravel, and gentle inclines up to 12°, with an IPX5 motor rating for added protection against rain and splashes.
• LED Safety Lights — front-facing LED lights are designed to support visibility in low-light conditions, supporting safer use during evening outings or in dimly lit environments.
• Comfort Suspension System — shock-absorbing suspension in both the front wheels and seat is designed to reduce impact on uneven surfaces, supporting comfort during extended use.

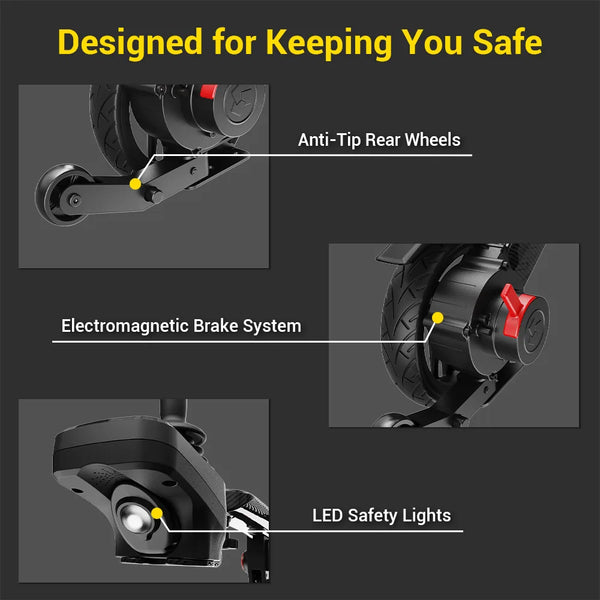

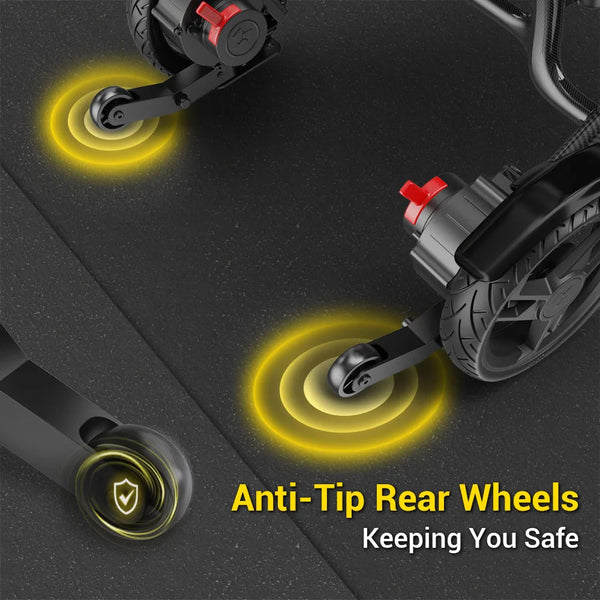

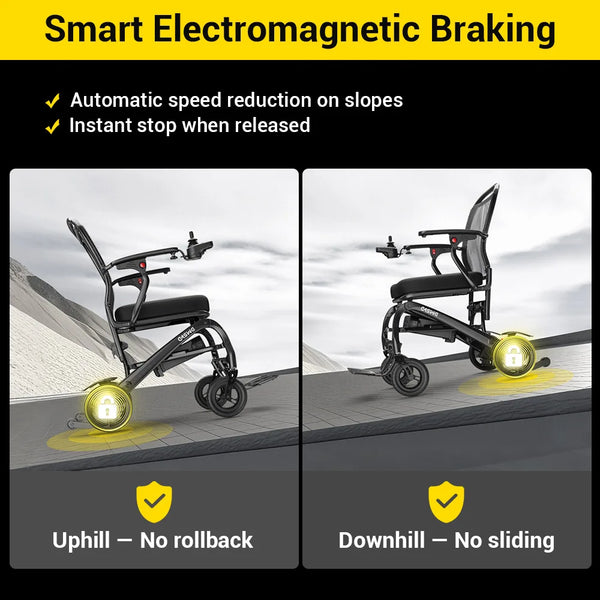

• Comprehensive Safety System — intelligent electromagnetic brake system, anti-tip rear wheels, and a seat belt are designed to assist user stability and safety during everyday movement.

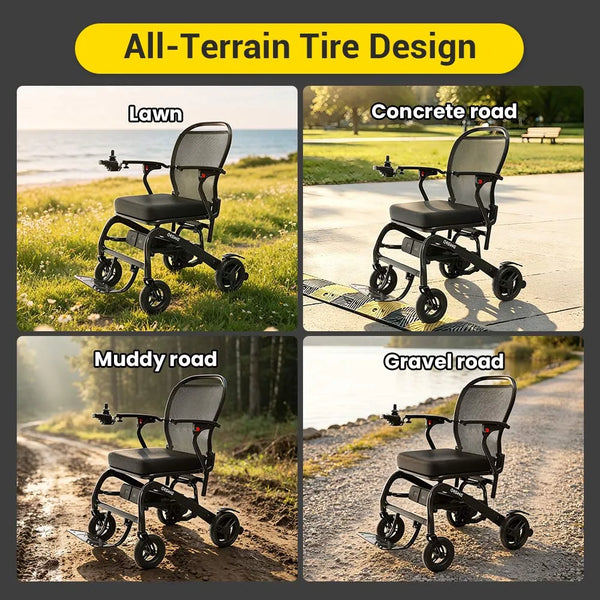

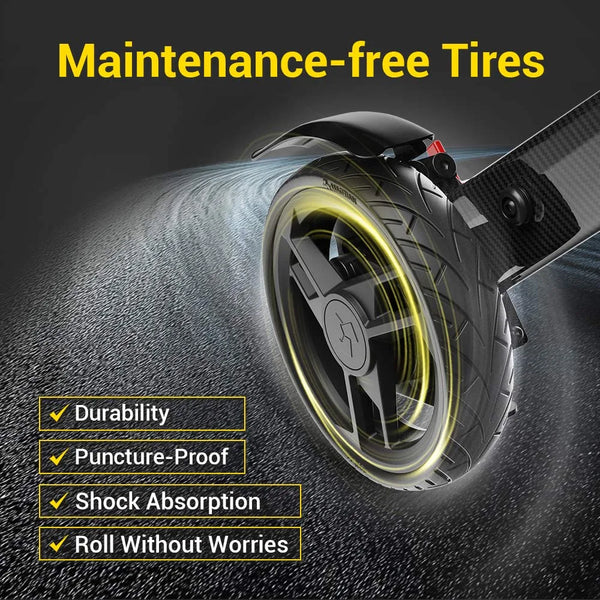

• Solid Puncture-Free Tyres — 7" front and 8.5" rear solid tyres are maintenance-free — no inflating, no punctures — for reliable indoor and outdoor use.

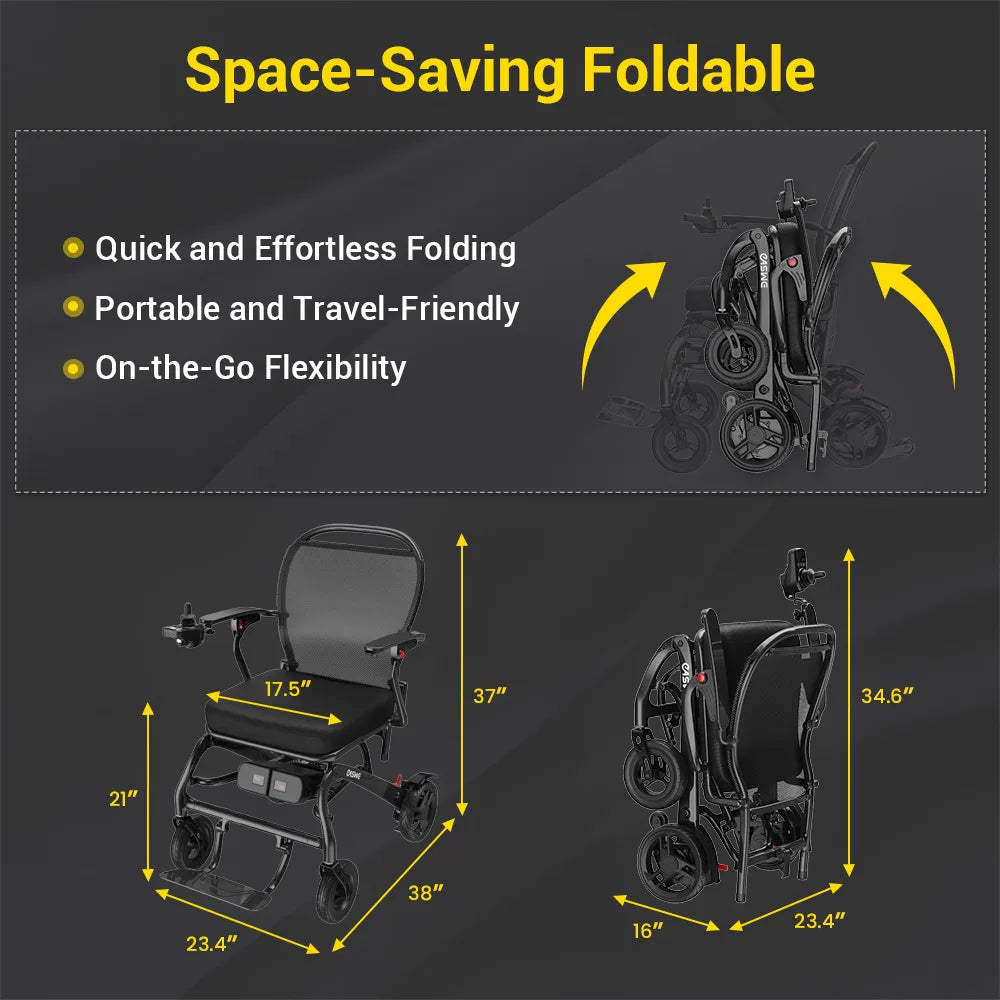

• Compact Foldable Design — folds to approximately 41 × 59 × 88 cm for storage at home, loading into a car boot, or transport as mobility equipment on flights.

The Easwe C20 may assist individuals seeking powered mobility support in the following situations:

• Limited lower-body mobility or inability to self-propel a manual wheelchair
• Reduced walking endurance due to age, illness, or physical condition
• Post-surgical or rehabilitation periods where walking is restricted
• Progressive conditions affecting mobility (e.g. MS, Parkinson's, arthritis, stroke recovery)
• Users who require extended daily range without carrying or swapping a spare battery
• Frequent travellers requiring a lightweight, airline-compliant powered mobility device
• Users who prioritise a lightweight carbon fibre frame and corrosion resistance
• Day-to-day independence at home, in the community, or while travelling

Recommended for users between 150–190cm in height and up to 120kg in weight. We recommend consulting a physiotherapist, occupational therapist, or GP to confirm this model is suitable for your individual needs. NDIS participants should contact us to confirm funding eligibility before purchasing.

1. The C20 arrives 95% pre-assembled — remove from packaging and unfold the frame by pressing the side release buttons and pulling upward on the seat until it clicks firmly into position.
2. Fit both batteries into the battery compartment and secure the locking mechanism until it clicks, as shown in the product manual.
3. Connect the LCD joystick controller to the armrest port and ensure it is firmly seated.
4. Power on using the joystick controller and verify the battery level, LED lights, and display are functioning correctly.

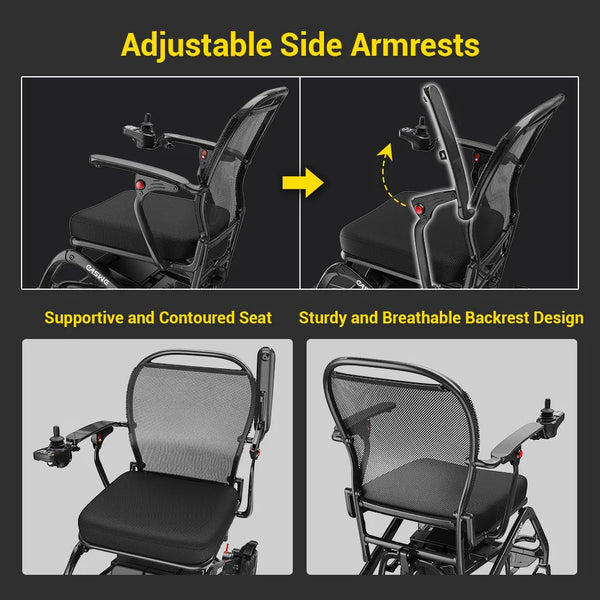

5. Adjust the footrests and armrests to suit the user's height and comfort before first use.

• 1 × Easwe C20 Long Range Carbon Fibre Foldable Electric Wheelchair
• 2 × 10Ah Lithium Batteries (airline-approved, included as standard)
• Battery Charger
• 1 × IP66 LCD Joystick Controller
• 1 × Seat Belt
• 1 × Product Manual

• Wipe the frame, seat, and footrests with a damp cloth — do not submerge in water or use high-pressure cleaning.
• Store in a dry location away from direct sunlight and extreme temperatures.
• Charge the batteries after each use and avoid allowing them to fully deplete before recharging.
• Inspect tyres, brakes, and joystick connection regularly — a comprehensive safety check is recommended every six months. Contact us if any component requires attention.

• Consult a physiotherapist, occupational therapist, or GP before use to confirm this wheelchair is appropriate for your condition and individual needs.
• Do not exceed the maximum load capacity of 120kg.
• Not designed for slopes steeper than 12°, stairs, escalators, sand, or rough off-road terrain.
• Reduce speed when navigating inclines, ramps, or uneven surfaces — exercise caution at all times.
• Do not submerge in water despite the IP66 controller and IPX5 motor ratings — avoid deep puddles and flooded areas.
• Follow the product manual when fitting, removing, and charging the batteries.
• The seatback angle on the C20 is fixed and cannot be adjusted — if seatback recline is required, consider the Easwe B10 or G10 models.
• Always engage the electromagnetic brake when stationary on a slope or incline.
• Do not modify the wheelchair or its components — modifications void the warranty and may affect safety.
• Keep children away from the joystick and controls when the wheelchair is powered on.

Range figures obtained with a 75kg user on flat terrain at 33°C. Actual range may vary based on user weight, terrain, temperature, speed, and battery condition. Dimensions are approximate and converted from the manufacturer's imperial specifications.

What is the difference between the C20 and the C10?
Both are lightweight carbon fibre series wheelchairs with dual 200W brushless motors and an IP66 LCD controller. The C20 has a full carbon fibre frame and is lighter at approximately 12.7 kg (vs 15.8 kg for the C10's carbon fibre and aluminium hybrid frame). The C20 also comes with two 10Ah batteries used together for up to approximately 40 km, and supports up to 120 kg. The C10 uses a single 12Ah battery (up to approximately 24 km) with an optional spare, and supports up to 113 kg. If extended range and the lowest weight are your priorities, the C20 is the better choice.

Is the C20 suitable for outdoor use?
Yes — the C20 features solid puncture-free tyres, dual 200W brushless motors designed to assist navigation on footpaths, light gravel, and gentle inclines up to 12°, and an IP66-rated controller for protection against rain and splashes. It is not designed for steep off-road terrain or soft ground such as deep sand or mud.

Can I take the C20 on a plane?
The C20's lithium batteries are airline-approved and designed to meet international carry-on requirements. As the C20 uses two batteries, we recommend contacting your airline in advance to confirm their specific wheelchair and battery policies, as requirements can vary by carrier and destination.

Can I use NDIS funding to purchase the C20?
The Easwe C20 may be eligible for NDIS funding under Assistive Technology — Mid Cost or Higher Cost, depending on your plan and support needs. An assessment from an occupational therapist is typically required for powered mobility devices. Australian Healthcare Supplies is a registered NDIS provider. Contact us for assistance with your NDIS order.
